Vinyl Cutter Plotter Machine with Signmaster Software & LCD Display for Custom Designs

Our plotter cutter can be connected to COMPIM and USB interfaces, supports U dISK, pc more easily. Compatible systems: Windows Windows XP/ista/7/8/10/11, compatible with mainstream design software such as SIGNMASTER and CDR, but incompatible with Mac systems.

Specifications:
Brand:SIHAO
Main Functions: Create graphics in computer software, connect them to the machine, and output the result; the machine can then cut according to the graphic.
Rated Voltage/Frequency: 110V
Rated Power: 150W
Main Board Type: ARM32 High-Integration Main Board
ARMS Photoelectric Positioning: Equipped with 5V Powered Red Light Positioning Source
Cutting Method: Knife Cutting/Pen Drawing/Edge Tracing Positioning
Cutting Accuracy: Knife ±0.01mm
Maximum cutting width: 23.6"/600mm
Cutting pressure: Knife 10-500g
Cutting speed: 10-800mm/s
Paper Feed Accuracy: 5-10M
Minimum Controllable Character: English 5mm, Number 8mm (no broken strokes)
Repeat Accuracy: ≤±0.08mm
Long Distance Tracking: ≥5M
Number of Pressure Rollers: 3
Paper Roller Movement Range: Full width movement, 600mm
Number of Recognition Points/Illumination: 4-point
Supported Commands: HPGL/DMPL
Drive Motor: Stepper Motor
Button Type: Mechanical Buttons
Language: Chinese/English
Overall Noise: ≤65dB
Connection Method: Serial Port/USB/Offline USB Flash Drive
Paper Feed Roller: Aluminum Knurled Roller
Bracket: Inner Aluminum Bracket
Memory: 256M (Additional Functions: Power-off Resume Cutting/File Copying/Multiple Copies)
Software: SignMaster Semi-automatic Software, English Version of Wentai, Wentai Millennium Image Library, CDR Printing Driver
Compatibility: Suitable for PC or Windows XP/ista/7/8/10/11, Mac incompatible
Main Materials: Iron + Stainless Steel + ABS
Grinding Wheel Shaft Material: Hard Aluminum Alloy

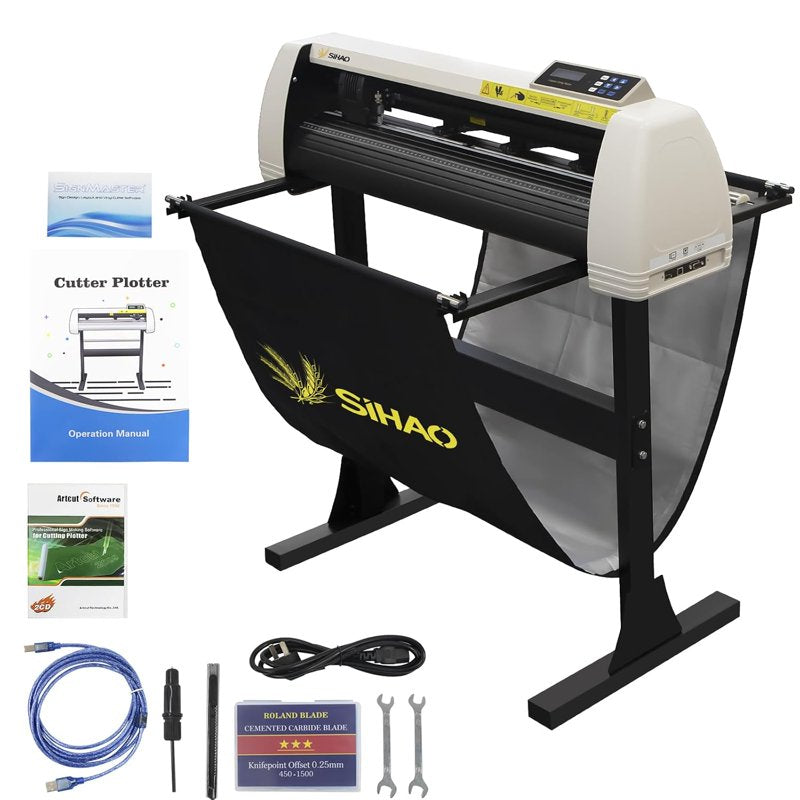

Package Include:
HK-720KNR Engraving Machine *1
Stand *1 Cloth Bag *1
Engraving Knife Pen Holder *1
Engraving Knife Holder *1
Power Cord *1
USB Cable *1
Utility Knife *1
Wrench *2
SignMaster Software *1 (Refrigerator Magnet)
Wentai Software *1
Wentai Millennium Image Library *1
CDR Plugin *1
Instruction Manual *1

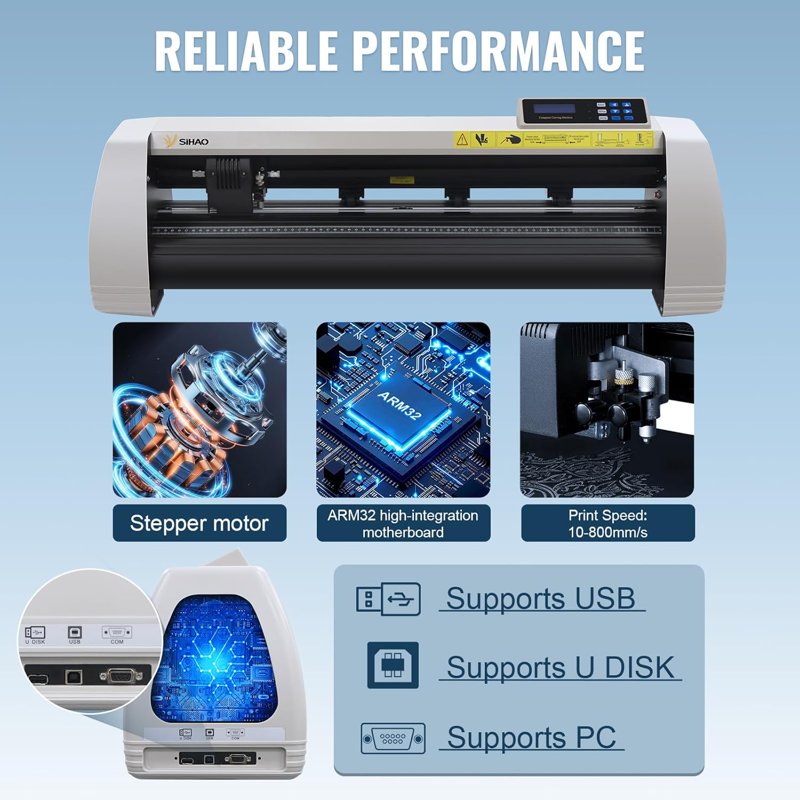

• Outstanding performance: Equipped with a precision stepper motor and an ARM32 high-integration motherboard, it features a maximum speed of 800mm/ s and a maximum width of 600mm, capable of handling materials up to 1mm thick. 256MB super large cache while maintaining low noise.
• Precision cutting: The cutting accuracy is as high as ±0.01mm. Three sets of double-spring paper-pressing wheels combined with aluminum alloy embossed rollers effectively prevent deviation. Supports real-time adjustment of cutting pressure (10-500 grams) and speed (10-800mm/ second)
• Digital control platform: Equipped with a liquid crystal display screen and a multi-functional control panel, it has thousands of built-in design templates. It features a unique emergency start and stop button, ensuring safe and convenient operation.
• Wide compatibility: Supports COMPIM/USB dual interfaces for direct connection with USB flash drives, compatible with all Windows systems and mainstream design software such as SIGNMASTER and CorelDRAW (Note: Does not support Mac systems for the time being).
• CorelDRAW (Note: Does not support Mac systems for the time being). Multi-scenario application: Optimized for advertising decoration, handcrafted creation and commercial production, it can precisely cut vinyl stickers, cardstock, heat transfer materials, etc., and is suitable for signboards, decorative murals, handcrafted models and commercial labels, etc.
