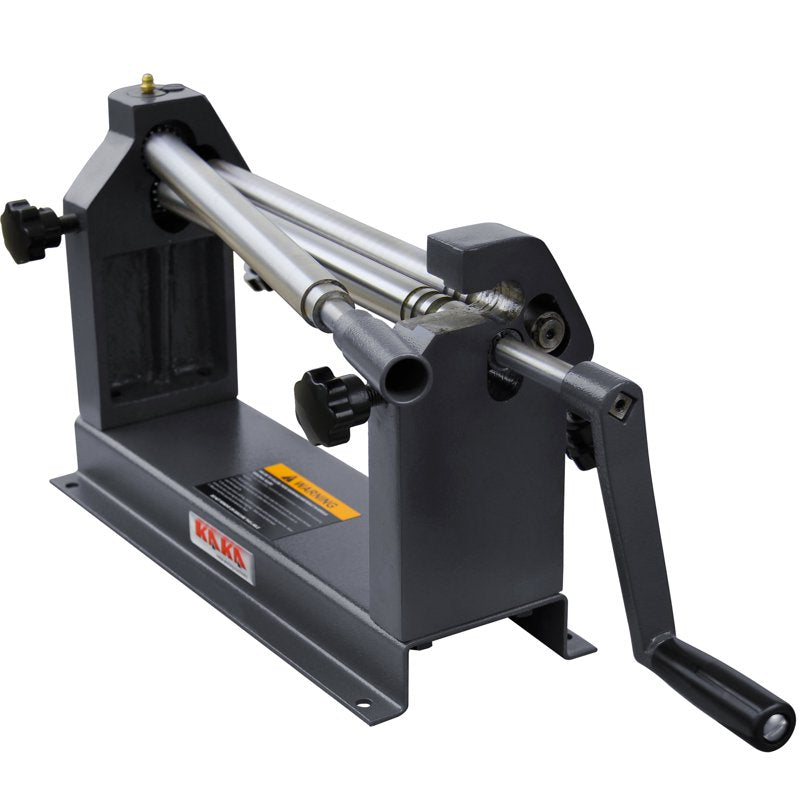

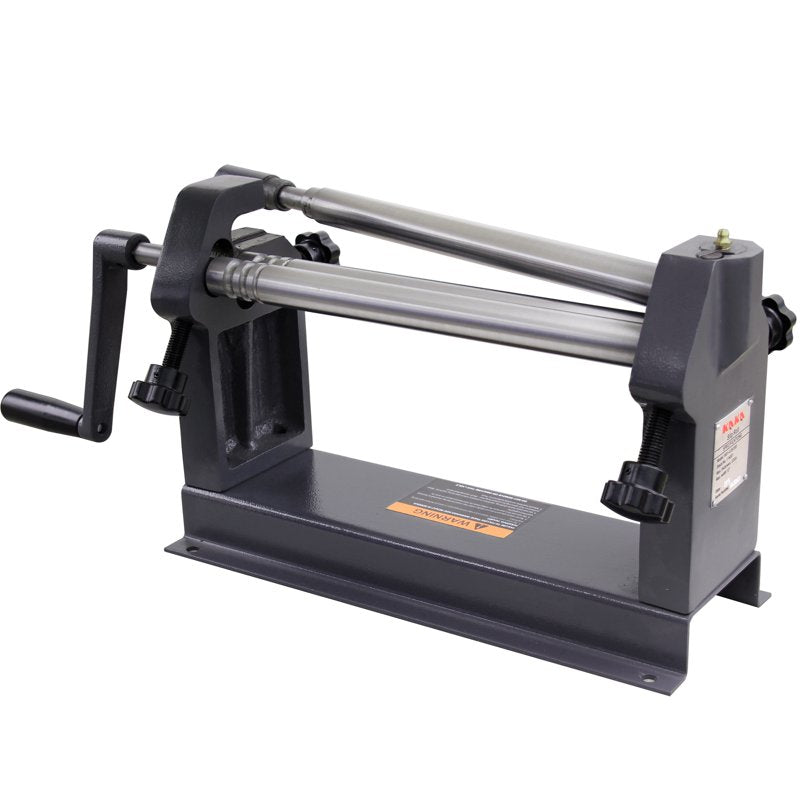

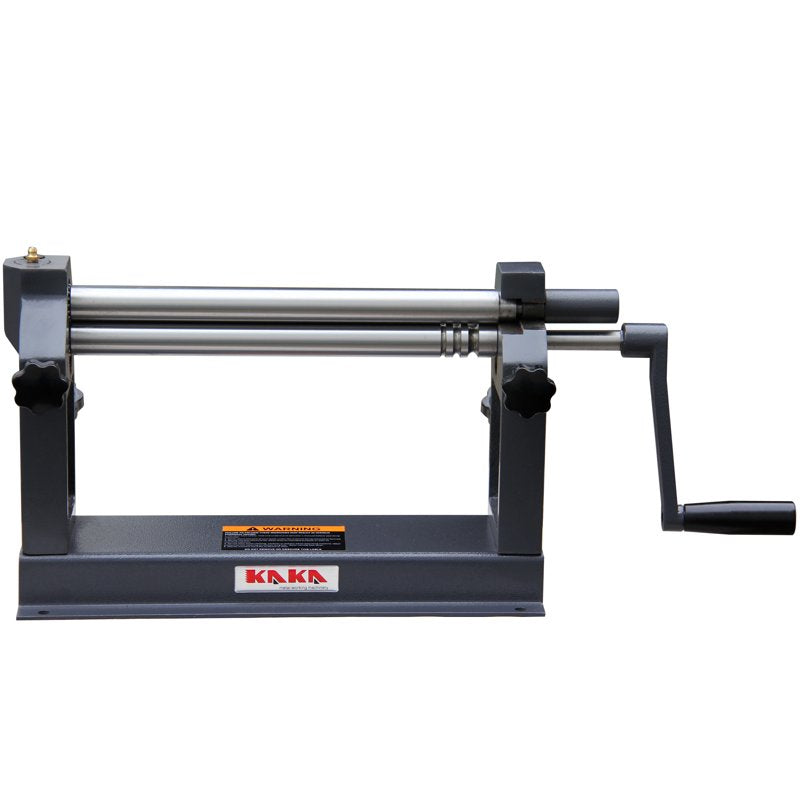

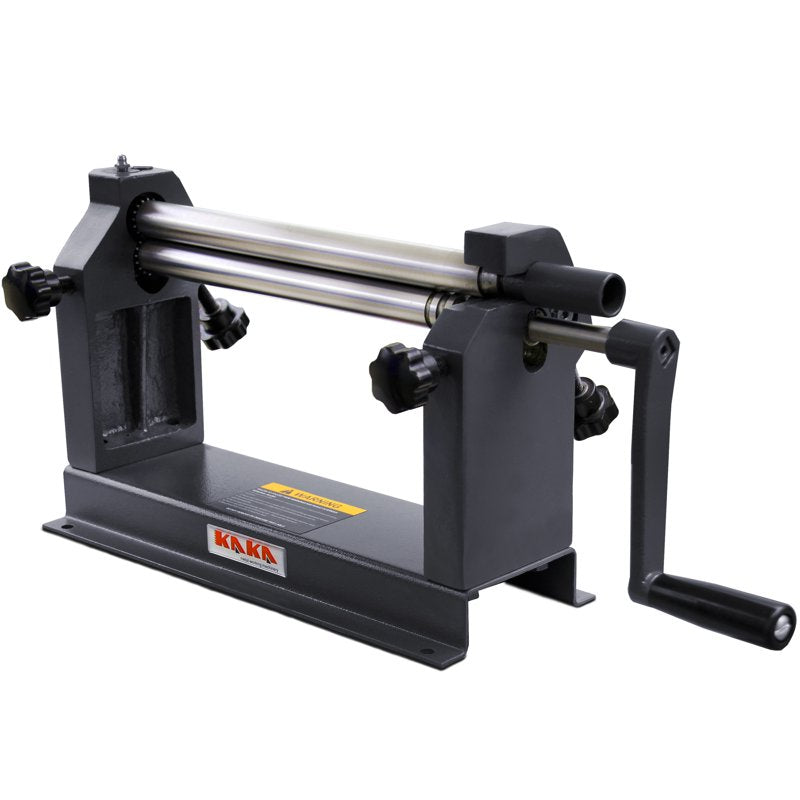

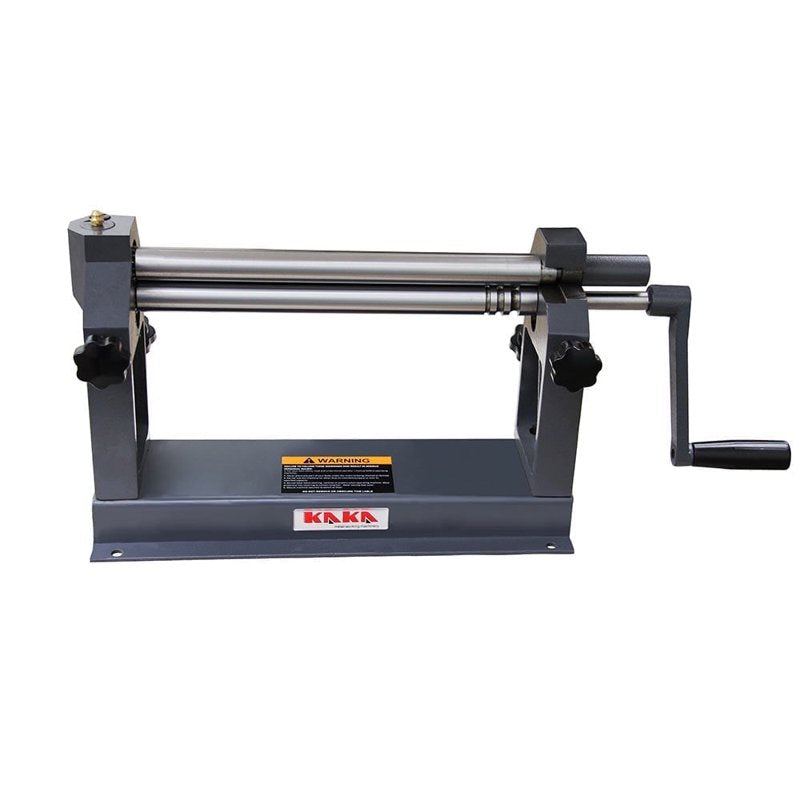

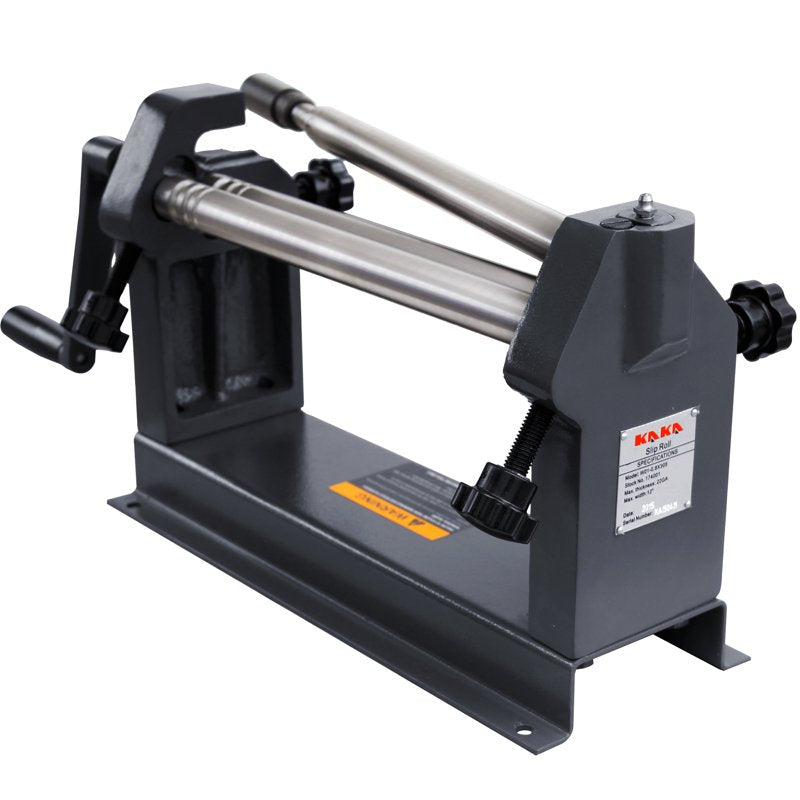

Manual Sheet Metal Roller Machine 12 Inch Capacity for Steel Aluminum Copper

Description:

Great Capacity

• The slip roll machine's processing capacity ranges from 305 mm to 1300 mm, and the forming width is up to 12".Our slip roll machine can roll round bar steels whose specifications are ￠6, ￠8, ￠10, and so on. It is also used for rolling various metal plates, including mild steel, stainless steel, aluminum, copper, and zinc sheets.

Flexibility and Versatility

• This slip roll machine not only equips a solid cast iron end frame for years of use with increased stability and safety, but it also features hardened steel gearing and high-strength steel rolls.
• A large handle crank and hardened, heavy-duty gearing give you the mechanical advantage to roll mild steel up to 22 gauges. The slip roll also features a quick-release top roller and bushings on larger slip rolls.
• Our slip roll machine reels and can also cone the materials. It can bolt to a workbench or hard ground surface, making it more flexible.

Wide Applications

• A slip roll machine is a versatile tool used in various industries and settings, including cylindrical parts production, sheet metal bending, repair and restoration work, small-scale manufacturing, educational settings, hobbyist workshops, etc.

Specifications

• Model: W01-1222
• Max.thickness: 22 Ga.
• Max.width: 12 in
• Dia.of roll: 1 in
• Packing size: 21x10x11 in
• N.W./G.W.: 29/31 lbs

• 12 inch Wide x 22-Gauge Sheet Metal Capacity: Handles mild steel, stainless steel, aluminum, and copper sheets (Max 12" width / 0.8mm thickness) with cast iron rollers for stable and consistent forming.
• Dual-Function Conical and Cylindrical Forming: Creates cylinders or tapered cones and rolls ￠6-10mm round bars for general fabrication and shaping tasks.

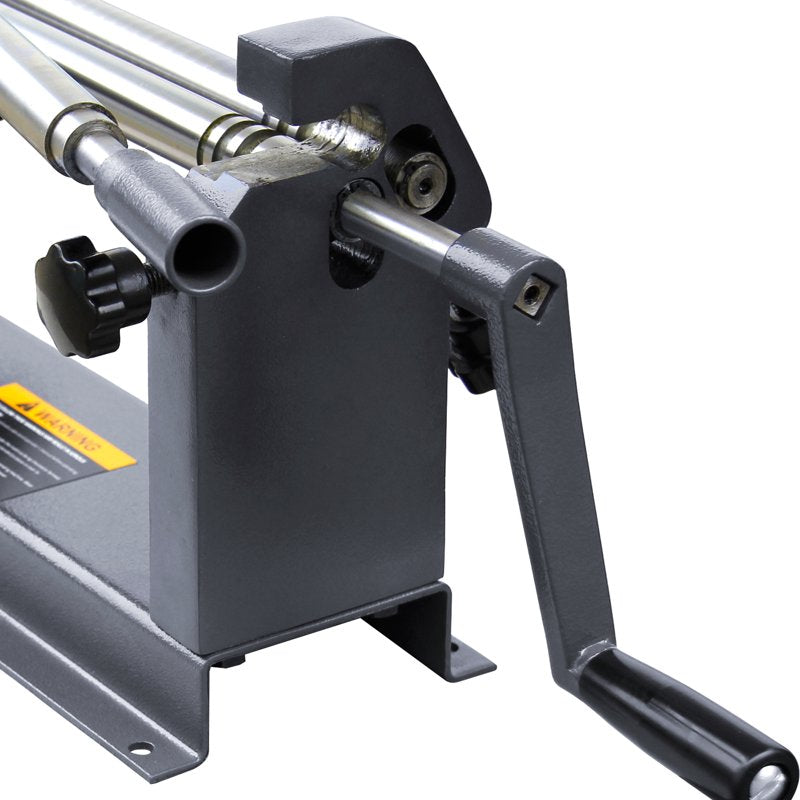

• Quick-Release Top Roller and Adjustable Lower Rolls: The swing-out top roller allows easy removal of workpieces, while the lower roll adjustment lever provides simple thickness control.
• Heavy-Duty Industrial Construction: Hardened steel gears and a cast iron frame ensure stability and support curvature radii from 300 to 1300mm during operation.
• Workshop-Adaptable Mounting System: The bolt-down base allows for bench or floor installation, and removable rollers make cleaning, maintenance, and storage easier.
