DIY Laser Engraving Machine Kit 48W with Rotary Roller for Acrylic Wood Metal

AlgoLa/ser DIY KIT La/ser Engraver, 48W DIY La/ser Engraving Machine, La/ser Metal Engraver, 2W Output Eye Protection Compressed Spot Support LightBurn and APP Control, 12000mm/min La/ser Engraving Area(15.75"x15.75")

Features:

【Advanced La/ser Technology】AlgoLa/ser DIY KIT la/ser engraving machine, with 48W Machine Power, 2W La/ser Module Output Power. Smaller la/ser spot (0.08x0.04mm) with ultra fine lines meets your requirement for details on your work, the engraving speed can be as high as 12000mm/min.

【Wide Soft Software Compatibility】Compatible with various mature engraving software like LightBurn/La/serGRBL/AlgoLa/ser App, support Win 7 / Win 8/ Win 10, and also supports Mac system, engraving file format supports SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.The ONLY 2W entry-level la/ser engraver that supports WiFi. USB-C connection, Bluetooth, and built-in TF card are also covered. For starters, you can easily get started engraving offline with AlgoLa/ser App.

【Dual-core CPU】Deliver significant speed boost, achieving an impressive 32% higher CPU performance and 50% improved energy efficiency.

【Upgraded Motherboard 】Improved performance, expanded storage 8MB RAM, 8MB storage memory, and a built-in 32GB SD card.

【Strong Compatibility】Thanks to the upgraded motherboard, the DIY kit compatible la/ser power up to 20W to satisfy more requirements. With Smart Hub and AUC, it can work with versatile accessories(such as rotary roller) from different brands.

【Easy to Upgrade and Expand】The upgraded terminals of the motherboard, as well as modularization design of DIY kit, allows users to extend the existing frame and connect other accessories to achieve more possibilities.

【Safety Protection】Machine Offset Detection and Protection, Machine Tilt Detection and Protection, USB Connection Detection and Protection, Beam detection and protection, Current and Voltage Detection and Protection, Emergency Stop Switch, Key Lock.

【User-friendly Installation】There are few cables need to connect and each one it's just the right length for its position. The assembly can generally be completed within 10-15 mintutes with instruction help.

Specifications:

Machine Power: 48W

La/ser Module Output Power: 2W

La/ser Spot: 0.04 * 0.08mm

Wavelength: 450 - 460 mm

Routing Speed: 12000 mm/min

Working Area: 400 * 400 mm (15.75"x15.75")

Voltage Input: 100-240V 50-60HZ

Voltage Output: 24V3A (6A MAX)

Connecting Interfaces: Wi-Fi, USB(Type-C), Offline Use(TF card), Bluetooth

Certification: FCC, CE, RoHS

Control Software: LightBurn, AlgoLa/ser App, La/serGRBL

File Type(s): jpg, svg, png, bmp, G code, dwg, etc.

Material Capability: Acrylic, Metal, Wood, Stainless Steel, Cylinder, Glass, Rubber, Leather, Food, Paper, Fabric, Ceramics, Bamboo, PCB Board, etc.

Package Included:

DIY KIT 2W *1

RR2 Rotary roller *1

• AlgoLa/ser DIY KIT La/ser Engraver output power is 2W, it is designed to be smarter, faster, more accurate and easier to use
• Ultra-fine la/ser focal spot is reduced to 0.04x0.08mm, which makes the engraving effect more refined and outstanding. The engraving machine speed can be as high as 12000 mm/min, engraving area is 400*400mm
• AlgoLa/ser DIY KIT La/ser Engraver adopts a modular design, which is convenient for users to assemble, repair, and replace and update machine parts, installation about 10-15minutes
• AlgoLa/ser DIY KIT La/ser Engraver can engraving cylinders by add to rotary rollers. Unleash your creativity on over one hundred materials including paper, bamboo, wood, leather PCB board, aluminum oxide, metal, glass, etc.compatible with various mature engraving software, such as La/serGRBL(Free), LightBurn(Paid). Supports Win 7 / Win 8 / XP / Win 10 / Win 11, and also support MacOS and Linux system
• AlgoLa/ser DIY KIT La/ser Engraver with newest panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light to perfectly protect your eyes

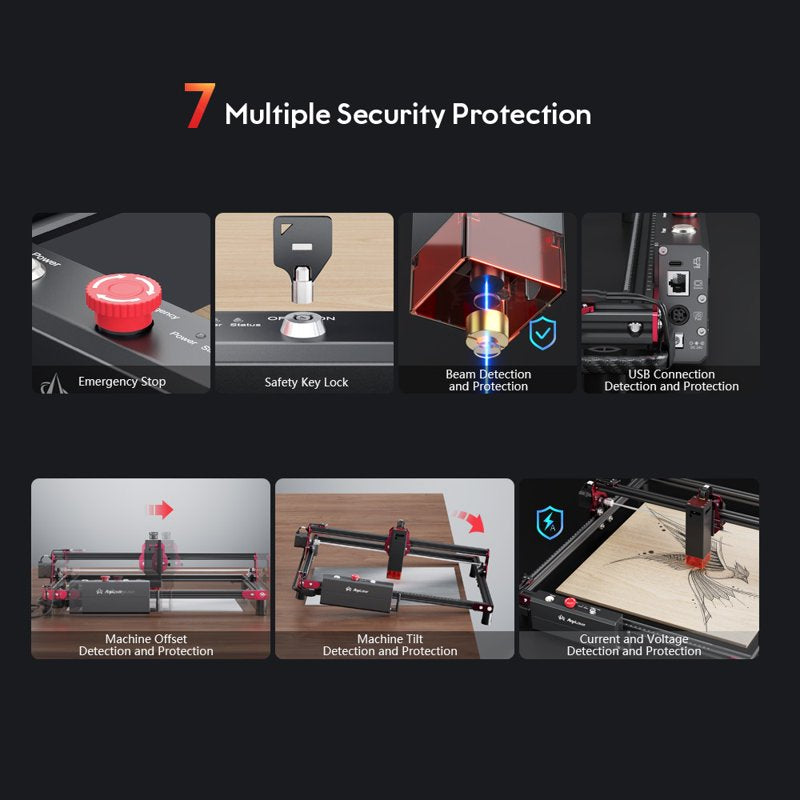

• 7 Safety Protection: ①Emergency Stop.②Switch Key Lock.③Beam Detection and Protection.④Machine Offset Detection and Protection.⑤Machine Tilt Detection and Protection.⑥USB Connection Detection and Protection.⑦Current and Voltage Detection and Protection
