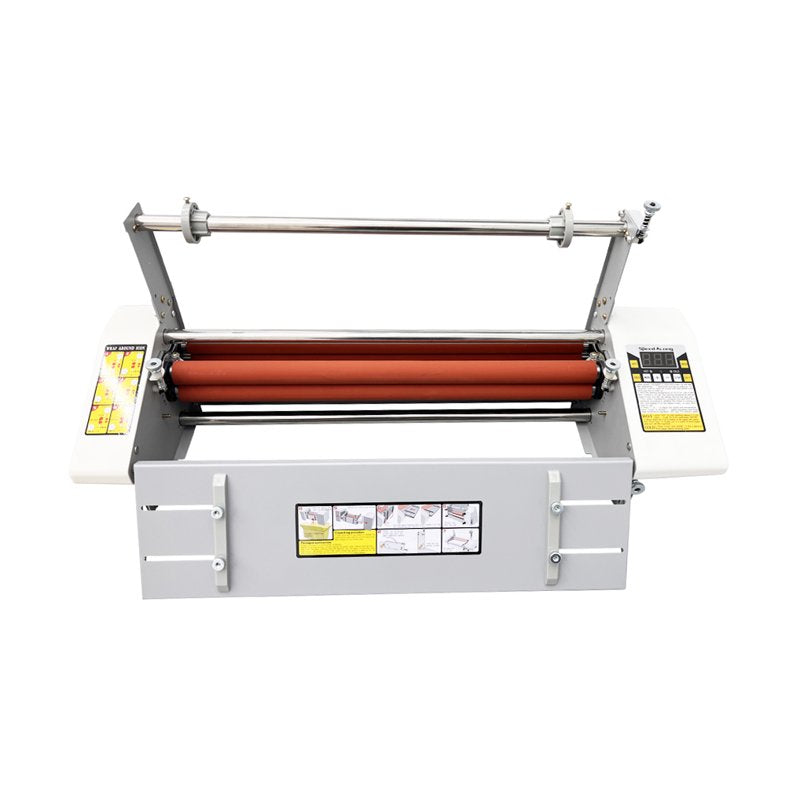

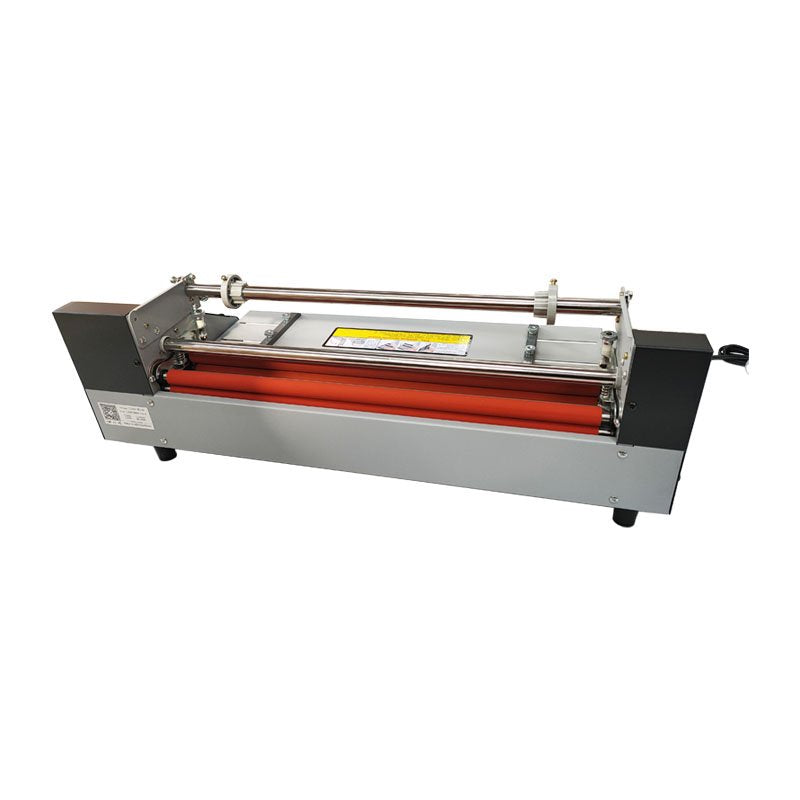

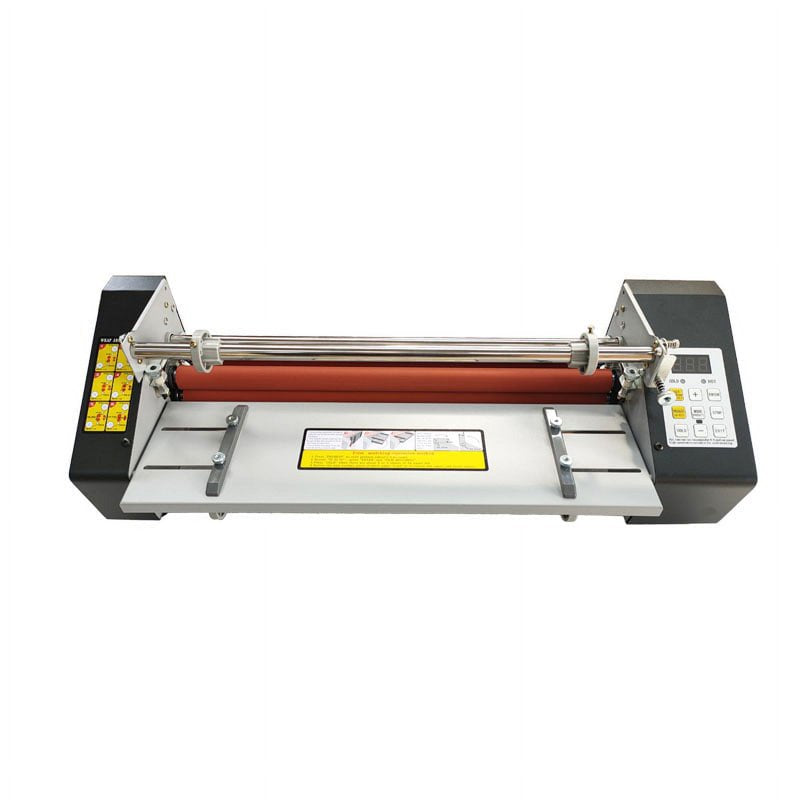

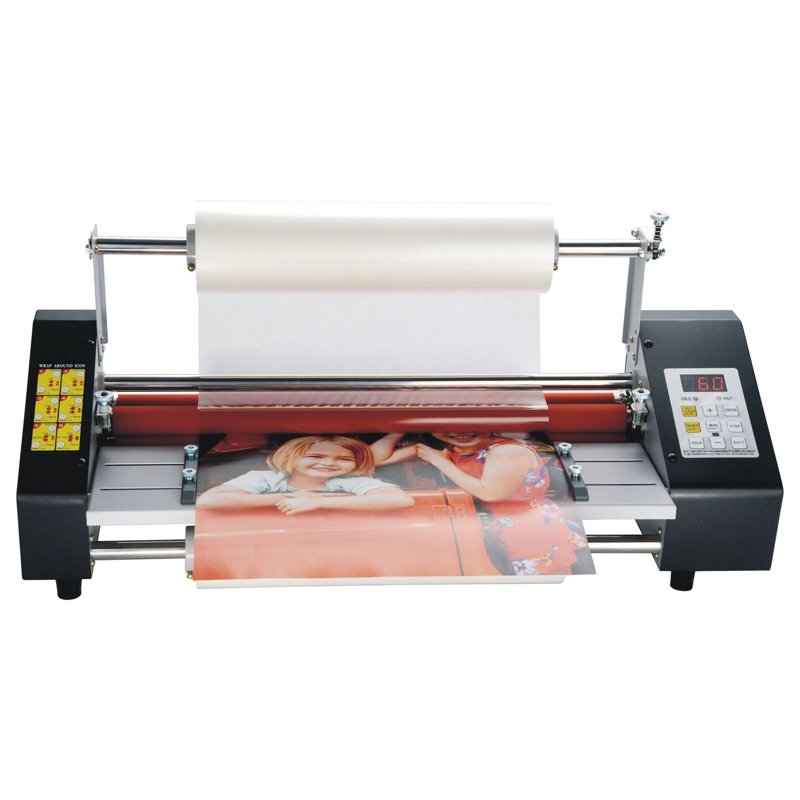

17.3 Inch Hot Cold Roll Laminating Machine Digital Display A2 110V

Cold mounting and hot mounting are based on the different classification of laminating consumables, both belong to "laminating". Therefore, the so-called laminating includes hot laminating and cold laminating. Our small film machine not only supports hot mounting consumables BOPP and pet hot melt adhesive pre coating, but also supports a wide range of cold mounting film, self adhesive and self mounting materials. Small film machine in addition to one side of the film. but also can be hot mounting on both sides at the same time. Users should flexibly apply the two kinds of consumables according to the requirements of customers and the compatible characteristics of products. If part of the printing substrate does not support high temperature, you can use cold mounting film to complete the lamination operation.

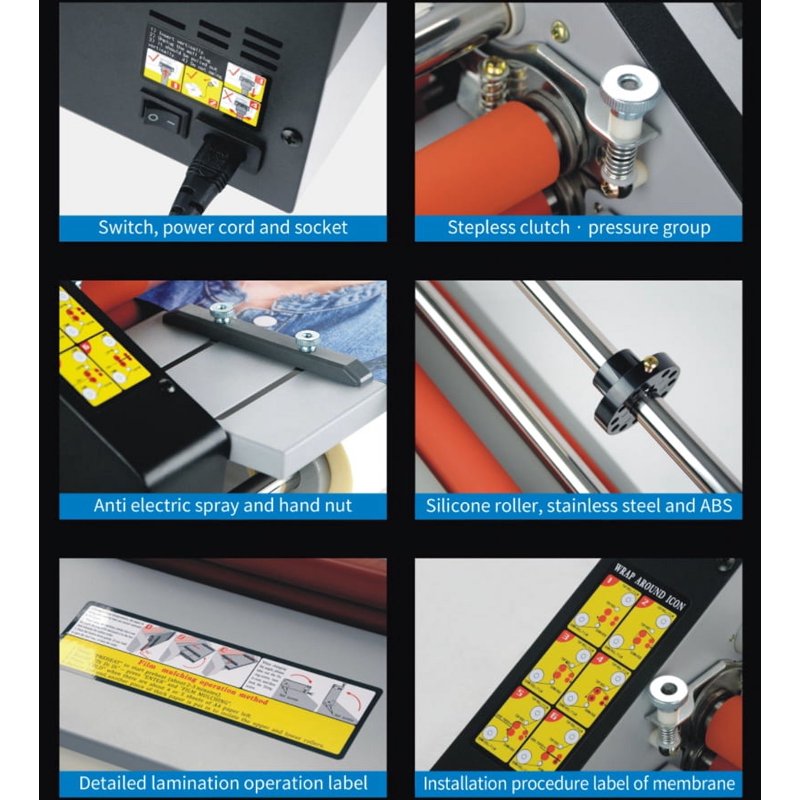

• The upper film holder is foldable, supporting 1-inch core and 3-inch core with outer diameter < 21cm
• Temperature, speed, mode, highlight digital dis-play, whether natural soft light, direct sunlight, or at night, you can have a clear impression, making you feel more comfortable
• It is a common tool for office printing, advertising graphics and photo studio
• Small automatic laminating machine can protect printing charts, contracts and important documents, improve the grade, waterproof, mildew proof, anti oxidation, tamper proof and scrubbable
• With the progress of technology, the function of small film machine is constantly improved, and it has been expanded to plate film, mobile phone case film, paper art to increase revenue

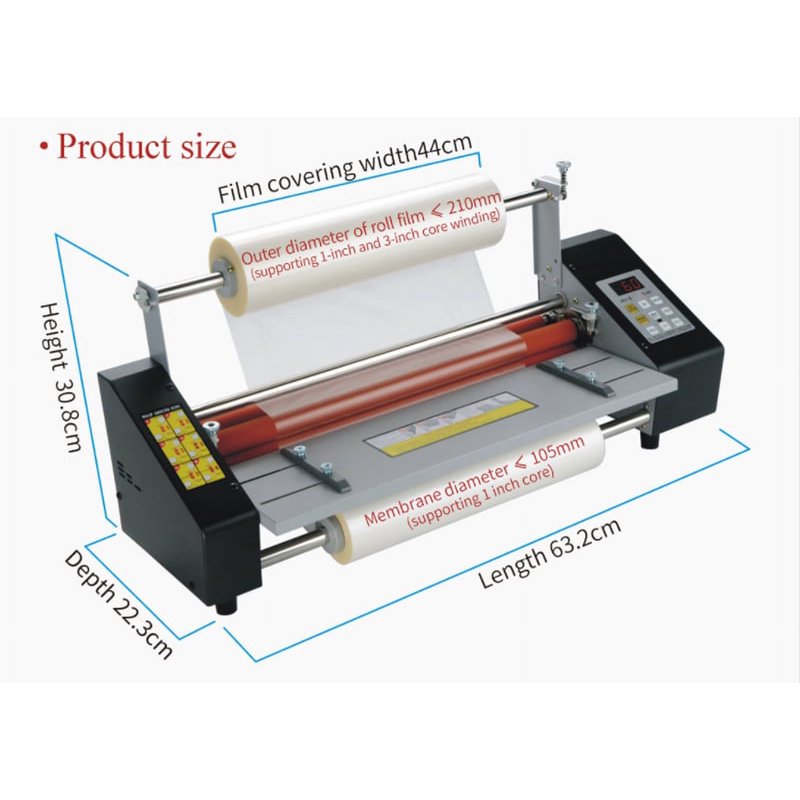

• Film covering width: A2+/17.3"(440mm) (Length customization)
• Paperboard thickness: 0.1-5mm (With stepless clutch)
• Film mulching speed: 0.3-3M/minute (Nine speed transmission)

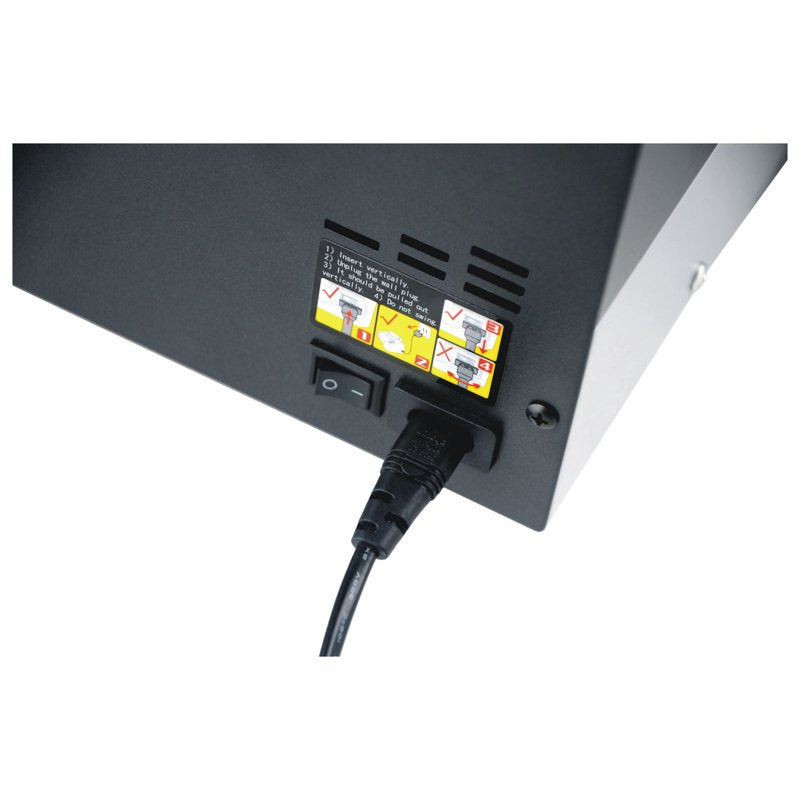

• Power supply: 110V/60hz
• Total power: 550W
• Temperature: 0-180℃ (Preheating is only 3 minutes)
• Main engine weight: ≤7.7kg（Including package＜9.5kg)
• Intelligent error correction
• One key quick control
• Cold mounting/hot mounting
• Nine speed shifting
• Single/double side lamination
• Hot mounting/cold mounting; single/double side
